Brand New Tektronix YT5060 60MHz 1x/10x Probe

This is a brand new, 60mhz probe that is user selectable 1x or 10x attenuation.

Nominal Specifications
Bandwidth:
 DC- 60MHz
Attenuation Ratio:
10:1 or 1:1
Compensation range:
 20 pF - 45 pF
Input Capacitance:
 16.6 pF or 110 pF
Input Resistance:
10M Ohm
Maximum Input V:
 500V (10X) 250V (1X)

Description:
The YT5060 probes can select 1X or 10X attenuation using the switch located on the probe head. This probe features a 1.5-meter cable. A hooktip, ground lead, and adjustment tool are included. These probes are compatible with any general-purpose oscilloscope with a BNC input connector. Ideally used on an oscilloscope with an input capacitance between 20 pF and 40 pF.

The 1X capability is good for looking at signals were low amplitudes are present. This probe is perfect for projects involving micro-controllers, op-amps, and general-purpose electronics.

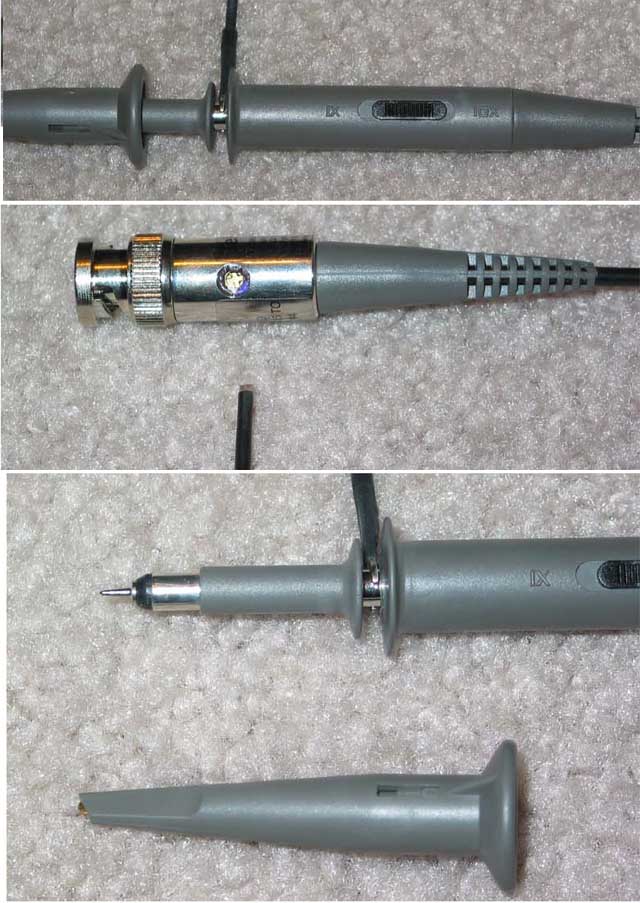

Pictures:
A 60Mhz probe can be used on a faster oscilloscope. Here is a screenshot of this probe compensated on a 500 MHz TDS3054 with a 13pF input capacitance.
